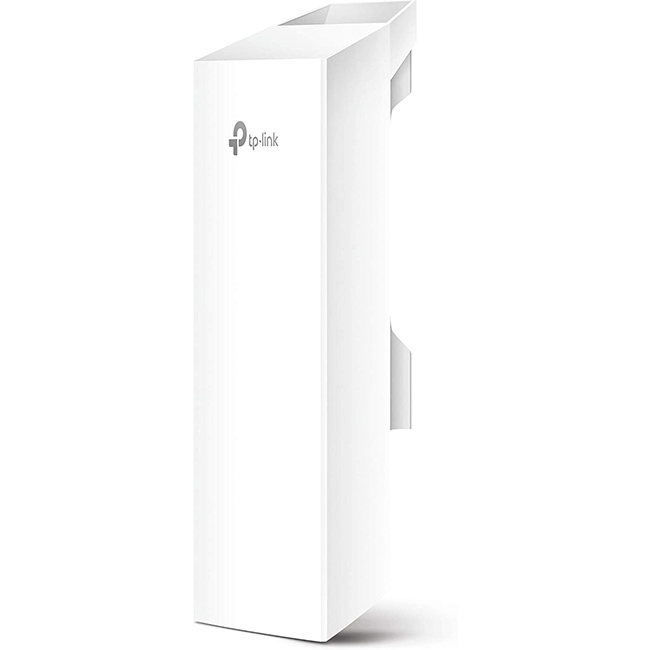

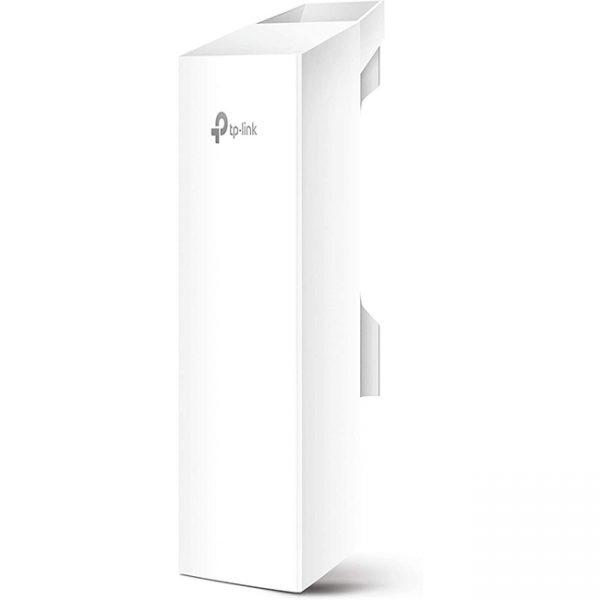

TP-LINK Outdoor 5GHz 300Mbps High Power Wireless Access Point – Atheros, WISP Client Router, Upto 27dBm, 2T2R, 5Ghz 802.11a/n, High Sensitivity, 13dBi Directional Antenna,Weather Proof, Passive PoE, Supports TDMA, Central Control

5ghz 300mbps 13dbi outdoor cpe cpe510

  • Built-in 13dbi 2×2 dual-polarized mimo antenna
  • Adjustable transmission power from 0 to 27dbm/500mw
  • System-level for more than 15km long range wireless transmission
  • Tp-link pharos maxtream tdma (time-division-multiple-access) improves product performance in throughput, capacity and latency performance, ideal for ptmp applications
  • Centralized system pharos control
  • Ap / client / repeater / ap router / ap client router (wisp) operation modes
  • Passive poe supports up to 60 meter (200 feet) power over ethernet deployment and allows the device to be reset remotely

Point-to-multi-point connections
Tp-link’s 5ghz 300mbps 13dbi outdoor cpe, the cpe510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor wi-fi coverage applications. Professional performance, coupled with user-friendly design, makes cpe510 an ideal choice for both and home users.

Enterprise hardware
With qualcomm atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and poe power supply, cpe510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30 (-22 ) to +70 (158 ).

Qualcomm atheros enterprise 560mhz cpu

  • High power tx and high sensitivity rx radio front-end design
  • Advanced antenna system
  • Built-in high gain dual-polarized antenna
  • Dedicated metal reflector ensures higher gain
  • And lower noise interference
  • 15km+tp-link maxtream tdma technology
  • As network scale increases, wireless competition and collisions among cpes and base stations will be
  • So enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
  • Experience. To mitigate these effects, the cpe510 uses maxtream tdma technology.

Pharos control centralized system

  • Cpe510 also comes equipped with centralized management software that helps users easily
  • Manage all the devices in their network from pc – pharos control. Functions like device discovery,
  • Status monitoring, firmware upgrading, and network maintenance can be managed using pharos control.


  • User-friendly web-based management system allows professionals to do more specific configurations.
  • 5ghz 300mbps 13dbi outdoor cpe cpe510
  • Built-in 13dbi dual-polarized
  • Antenna
  • Ap / client / repeater / ap router /
  • Ap client router (wisp) operation modes
  • 6000v lightning protection
  • Weather proof enclosure
  • 15kv esd protection
  • Passive poe




Product Code TL-CPE510spacer
Processor Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Dimensions ( W x D x H ) 224 x 79 x 60 mm
Antenna Type Built-in 13dBi 2×2 Dual-polarized Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6000V Lightning Protection
Power Consumption 13 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Power Passive Power over Ethernet via LAN0 (+4, 5pins; -7, 8pins)
Voltage range: 16-27VDC
Enclosure Outdoor ASA plastic material
IPX5 waterproof Certification
Memory 64MB DDR2 RAM, 8MB Flash
Wireless IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz, Dynamic)
Up to 144.4Mbps (20MHz, Dynamic)
Up to 72.2Mbps (10MHz, Dynamic)
Up to 36.1Mbps (5MHz, Dynamic)
Frequency 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Reception Sensitivity 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Transmission Power 27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different depending on the limitations of the countries or regions in which the device is used.
Wireless Configurations Pharos MAXtream TDMA
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput / Stations / Interfaces / ARP / Routes / WAN / DHCP
Spectrum Analyzer
Speed Test
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
Interfaces 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Efficiency >80%
Button Remote Reset Button
Certifications CE / FCC / UL / IC / GS / PSB / C-tick / SAA / S-Mark / KC-mark
Power Status LEDs 0~0.8A: Green
0.8A~1.0A: Red
Output 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Dimensions(W x D x H) 110*57*33.5mm
Input Current 0.8A Max @ 100VAC
Input 100-240VAC, 50/60Hz
Output Voltage 24VDC(+4, 5pins; -7, 8pins)
Certification CE, FCC, RoHS, IPX5
Package Contents Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -30°C~70°C (-22 ~158 )
Storage Temperature: -40 ~70 (-40 ~158 )
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
