Product Code |

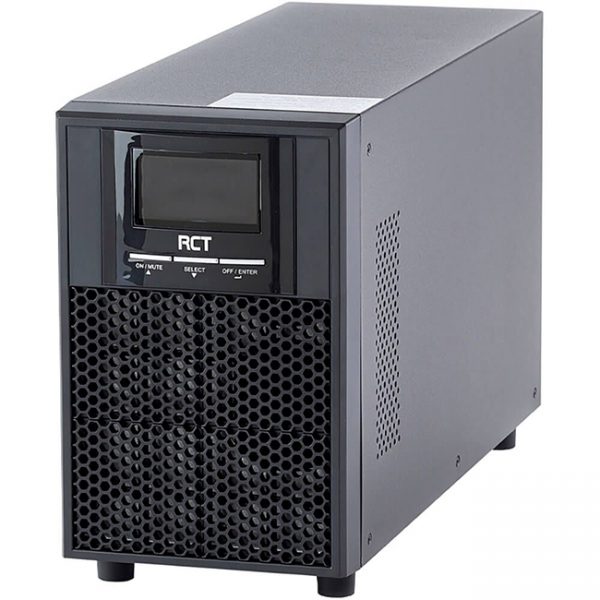

RCT-3000-WPTU |
CAPACITY |
3000 VA / 2400 W |
PHASE |
Single phase with ground |
INPUT |
Input Voltage Range |
55-150 VAC or 110-300 VAC (Based on load at 50%); 85-140VAC or 160-280VAC (Based on load at 100%) |
Nominal Voltage |
100/110/115/120/127VAC or 200/208/220/230/240VAC |
Frequency Range |
40Hz ~70 Hz |
Power Factor |
>= 0.99 @ Nominal Voltage (100% load) |
OUTPUT |
Voltage Regulation |
± 1% |
Output Voltage |
100/110/115/120/127VAC or 200/208/220/230/240VAC |
Frequency Range (Batt. Mode) |
50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
Transfer Time : AC Mode to Battery Mode |
Zero |
Transfer Time : Inverter to Bypass |
4 ms (Typical) |
Transfer Time : Waveform (Batt. Mode) |
Pure Sine Wave |
Current Crest Ratio |
3::1 |
Harmonic Distortion |
<= 3% THD (Linear Load); <= 6% THD (Non-linear Load) |
Frequency Range (Synchronized Range) |
47~53 Hz or 57~63 Hz |
EFFICIENCY |
Battery Mode |
0.88 |
AC Mode |
0.9 |
BATTERY |
Long-run Model : Battery Type |
Depending on the capacity of external batteries |
Long-run Model : Charging Current (max.) |
1A/2A/4A/6A (Adjustable) |
Long-run Model : Charging Voltage |
82.1 VDC ± 1% ,109.4 VDC ± 1% |
Long-run Model : Numbers |
6, 8 |
Standard Model : Battery Type |
12 V / 9 AH |
Standard Model : Charging Current (max.) |
1A |
Standard Model : Charging Voltage |
82.1 VDC ± 1% |
Standard Model : Numbers |
6 |
Standard Model : Typical Recharge Time |
4 hours recover to 90% capacity |
INDICATORS |
LCD |
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
ALARM |
Battery Mode |
Sounding every 4 seconds |
Low Battery |
Sounding every second |
Overload |
Sounding twice every second |
Fault |
Continuously sounding |
ENVIRONMENT |
Operating Humidity |
20~90% RH @ 0- 40°C (non-condensing) |
Noise Level |
Less than 50dB @ 1 Meter |
PHYSICAL |
Standard Model : Dimension, D x W x H (mm) |
421 x 190 x 318 |
Standard Model : Net Weight (kgs) |
27.6 |
Long-run Model : Dimension, D x W x H (mm) |
397 x 145 x 220 |
Long-run Model : Net Weight (kgs) |
7.4 |
MANAGEMENT |
Optional SNMP |
Power management from SNMP manager and web browser |
Smart RS-232/USB |
Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC |
