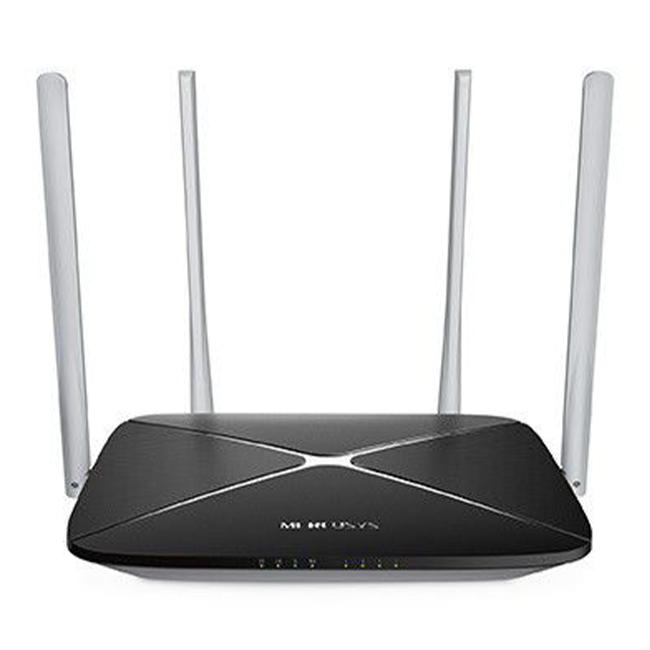

Mercusys AC-12 AC1200 Dual Band Wireless Router

1200Mbps Wi-Fi for Faster, Smoother Internet
The AC12 creates a reliable, blazing-fast Wi-Fi network using the powerful 802.11ac Wi-Fi standard, 3x faster than wireless N speeds. More and more devices use the ac standard, and the right router can being their Wi-Fi performance to full potential. With its advanced wireless speed, the AC12 is the superior choice for faster, stronger Wi-Fi.

Concurrent Dual Band Connections
With the power of dual band Wi-Fi, be more active with more wireless devices. 300Mbps over the 2.4GHz band is great for surfing and emails, while 867Mbps over the 5GHz band covers bandwidth-intensive tasks like HD streaming and gaming. Both bands are transmitted at once, letting you perform these tasks at the same time.

Strong Signal, Great Coverage
Four external 5dBi antennas powered with advanced antenna technology provide users with larger wireless coverage and wireless signal intensity throughout your large home or office, making weak, dropped connections a thing of the past.

Easy Parental Controls & Access Control
Supervise children and staff with responsible access, controlled by parents or administrators. You can easily set up a black or white list and limit the time of web access. Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.

Easy Three-Step Installation
With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your AC12 in minutes.

Advanced Security
WPA/WPA2 encryption creates an active defense against security threats and intruders

2×2 MIMO
Increases wireless transmission efficiency between multiple devices

Guest Network
Keep your main network secure with a separate network for guests

Product Code MER-AC12spacer
Dimensions (W X D X H) 222mm x 140mm x 32mm
External Power Supply 9VDC/0.85A
Antenna Type 4 x 5dBi omni directional antennas
Signal Rate 11ac: Up to 867Mbps (Dynamic)
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Button Reset button
Wireless Standards IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency 2.390 ~ 2.4835GHz
5.150 ~ 5.825GHz
Reception Sensitivity 11b CCK 1 -96
11g OFDM 6 -93
11n HT20 MCS7 -73
11n HT40 MCS7 -70
11a OFDM 6 -92
11ac VHT20 MCS8 -68
11ac VHT40 MCS9 -64
11ac VHT80 MCS9 -60
Interfaces 4 10/100Mbps LAN ports
1 10/100Mbps WAN port
Certifications CE, ROHS
Package Contents AC1200 Dual Band Wireless Router
Power adapter
Quick installation guide
Ethernet cable
Environment Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
Transmission Power <20dBm
Wireless Security WPA-PSK / WPA2-PSK
Wireless Functions WDS bridge
WAN Type Dynamic IP/Static IP/PPPoE
Management Access control
Local management
Remote management
DHCP Server
Port Forwarding Virtual server, UPnP, DMZ
Dynamic DNS Oray
Firewall Security IP and MAC address binding
Protocols IPv4
Guest Network 2.4GHz guest network
