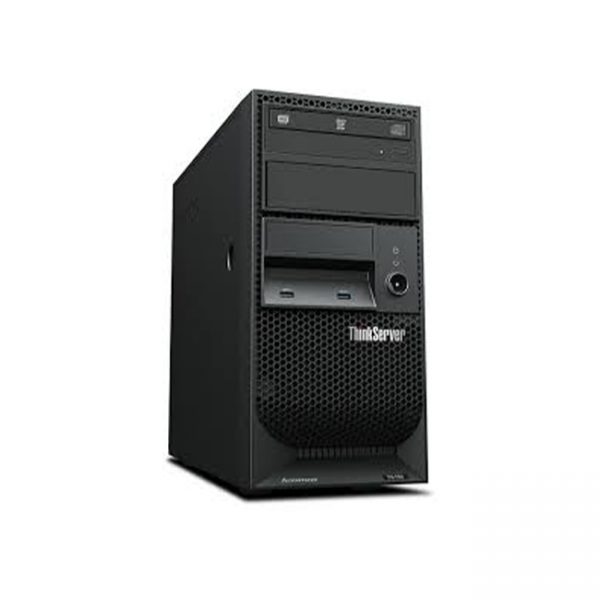

LENOVO THINKSERVER TS150 INTEL E3-1225 V6 8.0GB (70UB001NEA)


Lenovo ThinkServer TS150 Tower Server, Intel Xeon E3-1225 v6 3.3GHz up to 3.7GHz 8MB Cache Quad (4) Core Processor with intergrated Intel HD Graphics P630, 8GB DDR4-2133 ECC UDIMM memory, 2x 1TB 7200rpm 3.5″ 6Gbps Hard Drive, RAID 121i (0/1/10/5), DVD writer optical drive, Fixed 250W Bronze Power Supply, No operating system, 8x USB 3.0 (2 front / 6 rear), 1x RJ-45 Ethernet, 1x VGA, 3x audio (mic/lineout/line in), 1x DisplayPort, 1x RJ-45, 1x serial (9-pin), 3x audio (line-in / line-out / microphone)

ThinkServer TS150 Tower Server – Powerful. Reliable. Affordable.

  • Ideal first server
  • Intel Xeon E3 v6 CPU & TruDDR4 ECC memory
  • Enterprise-class storage and networking
  • Quiet, energy efficient, and affordable

Features:

  • A choice of Intel processor types
  • Up to 64GB of 2400MHz DDR4 memory
  • Up to 40TB of HDD storage; up to 4.68TB of SSD storage
  • Software RAID standard; optional hardware RAID
  • Choice of network interface cards (NICs); up to 9 ports
  • Support for client and server operating systems

Powerful, yet affordable
The Lenovo ThinkServer TS150 is the perfect first server for small and medium businesses, remote or branch offices, and retail environments. It uses the latest technologies to provide enterprise-class power. Intel Xeon E3-1200 v6 Series processors incorporate up to four cores, integrated graphics, and support for 64GB of 2400MHz DDR4 memory. These features enable you to run larger workloads faster than before, and even virtual machines (VMs) for more efficient server usage. Intel Active Management Technology (AMT) built into the TS150 offers easy-to-use, industry-standard management tools for remote monitoring, updates, and repairs. The TS150 provides much higher performance than a premium desktop can offer for about the same price.

Flexible value
In addition to powerful Intel Xeon E3 processors, the TS150 offers a choice of Core i3, Pentium, and Celeron processors for those on a smaller budget. Flexible storage options include 5.25-inch optical/tape drives, 3.5-inch HDDs, and 2.5-inch HDDs/SSDs. Up to 40TB of internal enterprise-class storage supports storage-intense workloads-such as office applications, web, e-mail and file/print serving-and provides growth capacity. Integrated software RAID 0/1/10/5-upgradable to entry hardware RAID-and Error Correcting Code (ECC) memory offer increased uptime. Multiple server operating systems are supported; client OS support enables retail/Point of Sale applications.

Environment-friendly
The TS150 saves you money and helps the environment with energy-efficient processors and 1.2V DDR4 memory, 80 PLUS Bronze (up to 85% efficient) or Platinum (92%) power supplies, and 65% recyclable materials. The office-friendly chassis is small (25L/4U), whisper-quiet (26dB) and fits under or beside a desk.



SKU: 70UB001NEA Categories: ,

Brand

Lenovo

Product Code 70UB001NEA
Model 70UB001NEA
Product ThinkServer TS150
Region EMEA
Machine Type 70UB
TopSeller TopSeller
Processor Xeon E3-1225 v6 4C/3.3GHz/8MB/73W/DDR4-2400
Memory 1x8GB UDIMM DDR4-2400 ECC
Storage Controller RAID 121i
Disk Bays Up to 4×3.5″ DC
Disks 2x1TB HDD 7.2K 3.5″ SATA6Gbps
Optical 9.5mm DVD±RW
Add-on NIC None
Add-on Ports None
System Management AMT
Operating System None
Power Supply Fixed 250W Bronze
Series Specs
Form Factor/Height Single-socket entry 4U tower, 25 Liter
Processor (Max) / Cache (Max) One Intel Xeon Processor E3-1200 v6 Series, Core i3, Pentium and Celeron up to 8MB
Memory DIMMS Up to 64GB TruDDR4 (4x 16GB UDIMMs), 2400MHz ECC UDIMMs
Memory capacity Up to 64GB (16GB x 4)
Media Bays Two without a backup drive or one with a backup drive. Support for DVD-ROM or DVD-RW.
Disk Bays Up to 4 x 3.5″ + 1 x 2.5″ non-hot swap disk bays
Maximum Internal Storage Up to 40TB 3.5-inch SATA HDD storage
RAID Support ThinkServer RAID 121i SW RAID 0/1/10/5 std, opt. PCIe ThinkServer RAID 520i 12Gb HW RAID 0/1/10/5
Power Supply (Std/Max) 1/1, 250W 80 PLUS Bronze or 400W 80 PLUS Platinum (non-hot-swap)
Network Interface Up to 9 ports: 1x onboard 1Gbps Ethernet std, 2 opt. 2/4-port 1Gb Ethernet adapters
Expansion Slots 4 PCIe 3.0 slots: x16/x16, x16/x4, x1/x1, x1/x1 (open end)
1 x PCIe 3.0: HL/FH: x16/x4
1 x PCIe 3.0: HL/FH: x1
Ports 8x USB 3.0 (2 front, 6 rear), 1x RJ-45 Ethernet, 1x serial (COM), 1x VGA (plus 1x DP), 3x audio (mic/lineout/line in), 1 x DisplayPort, 1 x RJ-45, 1 x serial (9-pin), 3 x audio (line-in, line-out, microphone)
Cooling 3 x fans, non-hot swap
Operating Systems Supported Microsoft Windows Server 2016 and 2012R2, VMware Vsphere (ESXi), Red Hat Enterprise Linux Server, and Client (Microsoft Windows 10)
Dimensions (W x H x D) & Weight 174.75mm (W) x 374.90mm (H) x 430.78mm (D)/6.88 inches (W) x 14.76 inches (H) x 16.96 inches (D), Max. 12, 5kg/27.6.lbs
