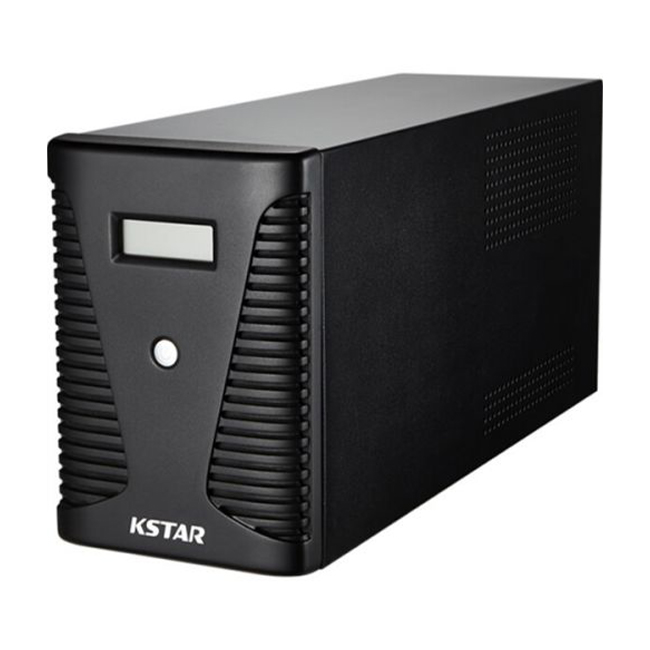

Kstar MicroPower UA300 3000VA Line Interactive UPS is reliable and convenient. It offers a cold start function and Built-in self-diagnostic functions.
Features
This UPS can charge up to 90% in battery capacity within a 6-8 hour period. This UPS provides built-in protection against Power overloads, discharge and overcharging of the device.
Note
A UPS is not designed to provide continuous power, it allows a computer or device to keep running for a short period of time when the primary power source is lost.
Model
UA300
Capacity (Va/Watts)
3000 / 1800
Input
Nominal Input Voltage
110/120vac Or 220/230/240 Vac
Operating Voltage Range
81-145vac/162-290 Vac
Operating Frequency Range
50/60 Hz (1±10%)
Output
Output Voltage Range (Batt. Mode)
Simulated Sinewave At Nominal Voltage ±10%
Frequency Range (Batt. Mode)
50 Hz Or 60 Hz ± 1 Hz
Transfer Time
Typical 2-6 Ms, 10ms Max.
Battery
Battery Type & Number
12V/9Ah x 4
Typical Recharge Time
6-8 Hours ( To 90% Capacity)
Protection
Full Protection
Indicators
Indicators
AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, Battery Low
Alarm
Battery Mode
Sounding Every 10 Seconds
Battery Low
Sounding Every Second
Overload
Sounding Every 0.5 Second
Battery Replacement Alarm
Sounding Every 2 Seconds
Fault
Continuously Sounding
Management
Usb & Rs-232 Port(Optional)
Supports Windows® 2000/2003/Xp/Vista/2008, Windows® 7, Linux, Unix, And Mac
Environment
Operating Temperature
0- 40°C
Humidity Range
0-95 % (Non-Condensing)
Noise Level
<40db (1 Meter From Surface)
Physical
Dimension, W X D X H (Mm)
144×432.5×207
Net Weight (Kg)
23
Standards
Safety
IEC/EN62040-1;IEC/EN60950-1
Emc
IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8
