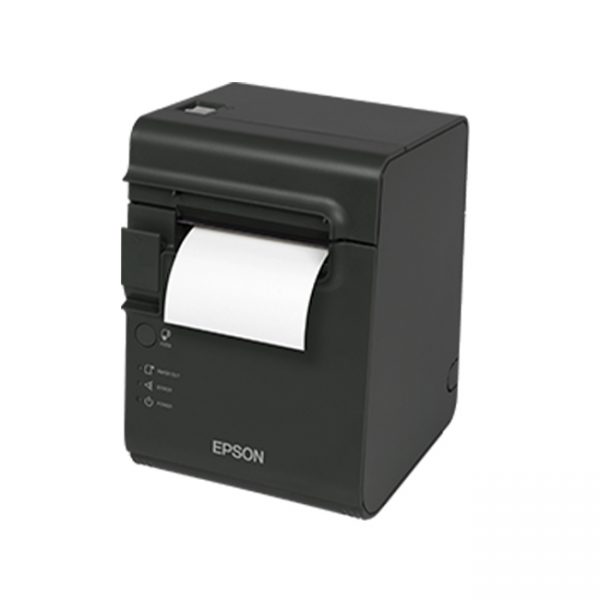

Epson TM-L90IIS Thermal Label Printer Black, Serial Port, Built-in USB, Power supply included, EDG

Epson TM-L90 : Serial + Built-in USB, PS, EDG

The TM-L90 is Epson’s compact thermal label printer that also ideal for barcode printing. This model effortlessly increases productivity for post offices, pharmacies, supermarkets and other businesses. You can easily print on different types of label and receipt paper, in a variety of different sizes, thanks to the adjustable cutter.

Label and barcode printing
With fast, thermal printing of up to 150mm/sec, the TM-L90 is a valuable asset to your business. With this model, you’ll be able to print out and get on with more important work, rather than waiting around for labels or barcodes.

More connectivity
This printer benefits from high speed serial, Ethernet and parallel connectivity plus a built-in USB interface, which means it can be operated as a network device.

Easy to use
The small footprint and wall bracket mean that you can place it almost anywhere, in any position, for convenient and versatile printing. Practical design features, such as drop-in paper load, selectable auto-cutter and jamproof paper feeding, ensure smooth operation. The easy-to-use operator cover and lifespan of up to 20 million lines enable long-lasting, trouble-free maintenance.

High quality labels
Its greyscale capabilities allow highly customised layouts, and logos and promotional messages can be added with ease.

Larger receipt rolls, wider paper
Altogether, the TM-L90 label printer is one of the most efficient label printers available: it accepts large paper rolls (up to 90mm in diameter) and you can select paper widths between 38 and 80mm to produce labels in different sizes.

Key Features

  • Versatile: Ideal for label and barcode printing. Supports greyscale printing.
  • Fast print speeds: Thermal printing up to 150mm/sec
  • Easy installation: Mounts horizontally, vertically or with a wall bracket
  • Easy operation: Drop in paper loading and built-in-USB interface
  • Media flexibility: Label and receipt paper, from 38mm to 80mm wide
SKU: TM-L90IIS Categories: ,




Product Code TM-L90IISspacer
Print method Thermal line printing
Technology Themal Line
Print Speed 150 mm/sec
Print Speed (label) 150 mm/sec
Print Speed receipt 150 mm/sec
Printing Font ANK
Column capacity receipt Paper width 80 mm, 38 / 70
Character size 1.5 mm (W) x 3 mm (H) / 1.13 mm (W) x 2.13 mm (H)
Character set 95 Alphanumeric, 18 set International, 128 x 7 Graphic
Characters per inch 22.6 cpi / 16.9 cpi
Dot density 203 DPI x 203 DPI
Colour Printing Black
Printing Characters Barcode
Paper Types Label, Receipt
Paper Thickness 0.06 mm – 0.08 mm, 0.15 mm
Paper size roll paper 79.50 ± 0.50 (W) mm x dia 90.00 mm
Interfaces Serial, USB 2.0 Type B
Data Buffer 4 kB or 45 Bytes
Power Supply PS-180
Power Consumption Standby: 0.1 A, Mean: 1.8 A
Operatingvoltage 24 V
Product dimensions 140 x 148 x 203 mm (Width x Depth x Height)
Product weight 1.9 kg
Colour Epson Dark Grey
Installation horizontally, vertically with wall hanging bracket
Interface connectors D.K.D. function (2 drivers)
Noise Level Operation: 53 dB (A)
Humidity Operation 10% – 90%, Storage 10% – 90%
Temperature Operation 5° C – 45° C, Storage -10° C – 50° C
Reliability 70,000,000 MCBF (Lines), 360,000 MTBF (Hours)
Auto Cutter Life 2,000,000 Cuts
Printer Life 20,000,000 lines
Print Head Life 120 km – 150,000,000 pulses
EMC Standards VCCI class A, FCC class A, CE marking, AS / NZS 3548
Safety standards UL, CSA, TÜV
Changeable interface Yes
Cutter Full Cut
Sensors Paper End Sensor, Paper Near End Sensor, Cover Open Sensor
What’s in the box Label paper roll, Main unit, PS-180, Panel label for horizontal installation, Paper exit guide, Paper roll spacer, Power switch cover, User manual
