Eaton 9E 20000I. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: Terminal. Form factor: Tower, Product colour: Black, Certification: CE, CB report (TUV). Width: 350 mm, Depth: 706 mm, Height: 815.5 mm
ACCESSORIES, UPS

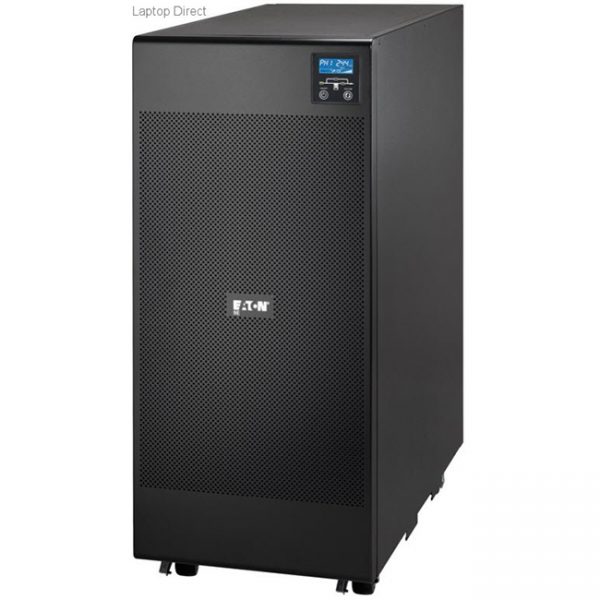

EATON 9E 20000I 20KVA UPS
Eaton 9E 20000I, Double-conversion (Online), 20 kVA, 16000 W, 110 V, 276 V, 45/66 Hz
| Product Code | 9E20Ki |
| General | |
| Topology | Online double conversion |
| Configuration | Tower |
| Part Number | 9E20Ki |
| Rating (VA/Watts) | 20000/16000 |
| Dimensions (H x W x D, mm) | 815.5 x 350 x 706 |
| Weight (kg) | 159.9 |
| Electrical Input | |
| Connection | Hardwired – see manual for terminal block layout |
| Input Voltage Range | 176-276V without derating (up to 110-276V with derating) |
| Nominal Voltage | 220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 45-66 Hz |
| Short Circuit Current | 273 A |
| Electrical Output | |
| Voltages | 220V/230V/240V ±2 % |
| Voltage THD | <3% |
| Outlets | Hardwired – see manual for terminal block layout |
| Overload Capacity | 105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms |
| Efficiency (Normal Mode) | Up to 93% in Online mode, 97% in ECO mode |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Communications | |
| Communication Ports | 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) |
| Communications Slot | 1 slot for Network-MS, ModBus-MS or Relay-MS cards |
| Power Management Software | Intelligent Power Software |
| Environmental & Standards | |
| Audible Noise | <55dB |
| Operating Temperature | 0 to 40°C |
| Safety markings | IEC/EN 62040-1 |
| EMC Markings | IEC/EN 62040 -2 |
| Approvals | CE, CB report (TUV) |
