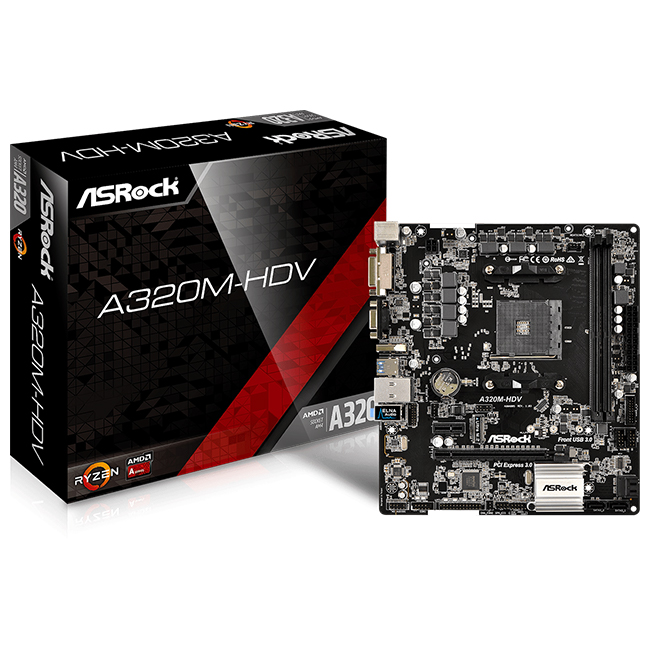

ASROCK A320M-HDV

Add to wishlist
Compare
  • ASRock Super Alloy
  • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge & Raven Ridge)
  • Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Graphics Output: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN

SKU: A320M-HDV Categories: ,
  • ASRock Super Alloy
    – High Density Glass Fabric PCB
    – Sapphire Black PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
    – Digi Power design
    – 7 Power Phase design
    – Supports CPU up to 65W
  • Chipset
    – AMD Promontory A320
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 2 x DDR4 DIMM Slots
    – AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
    – AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory*
    – Max. capacity of system memory: 32GB**
    – 15μ Gold Contact in DIMM Slots

    *For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support.

    A-Series APUs:

    Ryzen Series CPUs (Matisse):

    Ryzen Series CPUs (Pinnacle Ridge):

    Ryzen Series CPUs (Picasso):

    Ryzen Series CPUs (Summit Ridge):

    Ryzen Series CPUs (Raven Ridge):

    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 128Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 5.1 compliance wake up events
    – Supports jumperfree
    – SMBIOS 2.3 support
    – DRAM Voltage multi-adjustment
  • Graphics
    – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    – Integrated AMD Radeon™ R-Series Graphics in A-series APU*
    – DirectX 12, Pixel Shader 5.0
    – Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    – Three graphics output options: D-Sub, DVI-D and HDMI
    – Supports Triple Monitor
    – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
    – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
    – Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    – Supports HDCP 1.4 with DVI-D and HDMI Ports
    – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.

  • Audio
    – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    – Supports Surge Protection
    – ELNA Audio Caps
  • LAN
    – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111GR
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports LAN Cable Detection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
    – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    AMD 7th A-Series APUs / Raven Ridge CPUs
    – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
    AMD Ryzen series CPUs (Picasso, Raven Ridge)
    – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
    AMD Athlon series CPUs
    – 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

    – 1 x PCI Express 2.0 x1 Slot

    *Supports NVMe SSD as boot disks
  • Storage
    – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*

    *Supports ASRock U.2 Kit
    Supports NVMe SSD as boot disks
  • Connector
    – 1 x Print Port Header
    – 1 x COM Port Header
    – 1 x TPM Header
    – 1 x Chassis Intrusion and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
    – 1 x 24 pin ATX Power Connector
    – 1 x 4 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
  • Rear Panel I/O
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x D-Sub Port
    – 1 x DVI-D Port
    – 1 x HDMI Port
    – 2 x USB 2.0 Ports (Supports ESD Protection)
    – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock APP Charger
    – ASRock XFast LAN
    UEFI
    – ASRock Full HD UEFI
    – ASRock Instant Flash
    – ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 1 x Screw for M.2 Socket
  • Hardware Monitor
    – CPU, Chassis temperature sensing
    – CPU, Chassis Fan Tachometer
    – CPU, Chassis Quiet Fan
    – CPU, Chassis Fan multi-speed control
    – CASE OPEN detection
    – Voltage monitoring: +12V, +5V, +3.3V, Vcore
  • Form Factor
    – Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
    – Solid Capacitor design
  • OS
    – Microsoft® Windows® 10 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
