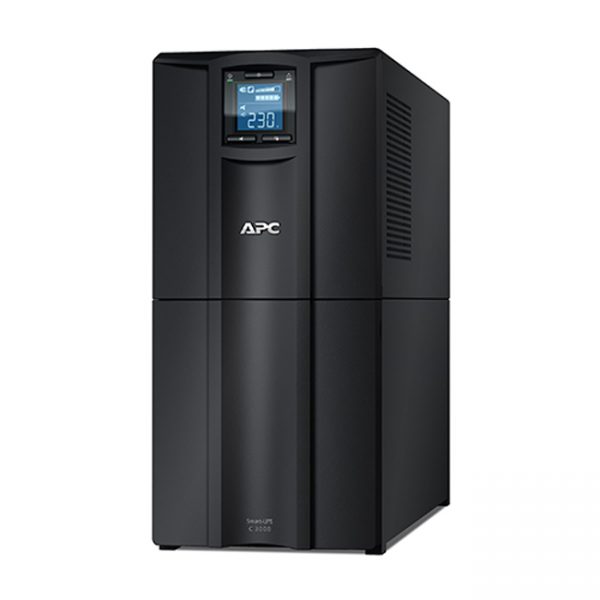

APC SMART-UPS C 3000VA LCD 230V


APC Smart-UPS C 3000VA LCD 230V, Input Voltage: 230, Output Voltage: 230, Shipping Weight: 112.00(lbs) 50.80(kilos), Shipping Dimensions: 30.00x 15.00x 27.52(in) 76.20x 38.10x 69.90(cent), UPC Code: 731304310105

High online efficiency
Reduces utlility costs, generates less heat.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

Cold-start capable
Provides temporary battery power when the utility power is out.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Availability

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Manageability

Network manageable
Provides remote power management of the UPS over the network.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial connectivity
Provides management of the UPS via a serial port.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Serviceability

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers
Enables a quick recovery from overload events.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Adaptability

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

SKU: SMC3000I Categories: ,
Product Code SMC3000Ispacer
Output
Output Power Capacity 2100 Watts / 3000 VA
Max Configurable Power 2100 Watts / 3000 VA
Nominal Output Voltage 230V
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 50 Hz
Topology Line Interactive
Waveform Type Sine wave
Output Connections (6) IEC 320 C13
(1) IEC 320 C19
Input
Nominal Input Voltage 230V
Input Frequency 47 – 63 Hz
Input Connections IEC-320 C14
Input voltage range for main operations 180 – 287V
Input voltage adjustable range for mains operation 170 – 300V
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3 hour(s)
RBC Quantity 1
Communications & Management
Interface Port(s) USB
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Surge Protection and Filtering
Surge energy rating 300 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 435.00 mm
Maximum Width 197.00 mm
Maximum Depth 544.00 mm
Net Weight 43.00 KG
Shipping Weight 51.00 KG
Shipping Height 762.00 mm
Shipping Width 381.00 mm
Shipping Depth 699.00 mm
Color Black
Environmental
Operating Environment 0 – 40 °C
Operating Relative Humidity 0 – 95%
Operating Elevation 0-3000 meters
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95%
Storage Elevation 0-15000 meters
Audible noise at 1 meter from surface of unit 45.00 dBA
Online Thermal Dissipation 135.00 BTU/hr
Conformance
Regulatory Approvals C-tick, CE, GOST, SABS, VDE
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
