- The Z-3110 is a simple-to-use contact CCD scanner that offers fast, reliable and sensitive scanning performance, the ideal entry-level product for first-time users.
- Proprietary Ultrascan decoding technology.
- Light and rugged design.
- Multi-interface communication.
POS, POS-Scanner

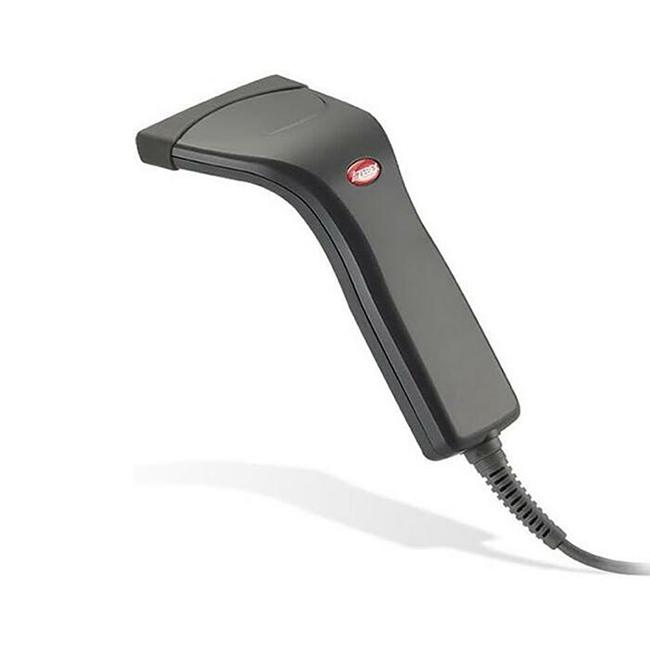

ZEBEX HANDHELD LASER SCANNER Z-3101PS2
ZEBEX Handheld Laser Scanner, PS2 Interface, Light and Rugged, 630 nm Light Source, Reliable and Sensitive Scanning.
| Product Code | Z-3101PS2 |
| Specifications | |
| Light Source | 630 nm visible LED |
| Optical System | Linear CCD array |
| Microprocessor | 32 bit |
| Depth of Field | 0 – 20 mm (UPC/EAN 100%, PCS=90%) |
| Scan Rate | 200 scans per second |
| Minimum Bar Width | 0.1 mm (4 mil) (Code 39, PCS=90%, contact) |
| Print Contrast | Min. 30% @ UPC/EAN 100% |
| Indicators (LED) | Blue LED |
| Beeper Operation | Programmable tone & beep time |
| Dimensions | 171.3 x 91.1 x 63.0 mm (device only) |
| Weight | 100 g (cable excluded) |
| Input Voltage | 5 VDC ±10% |
| Operating Current | 110 mA typical |
| EMC | CE & FCC DOC compliance, VCCI, BSMI |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | -20°C – 60°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Light Levels | Max. 4, 500 Lux (fluorescence) |
| Drop Durability | Designed to withstand 1.5M drops |
