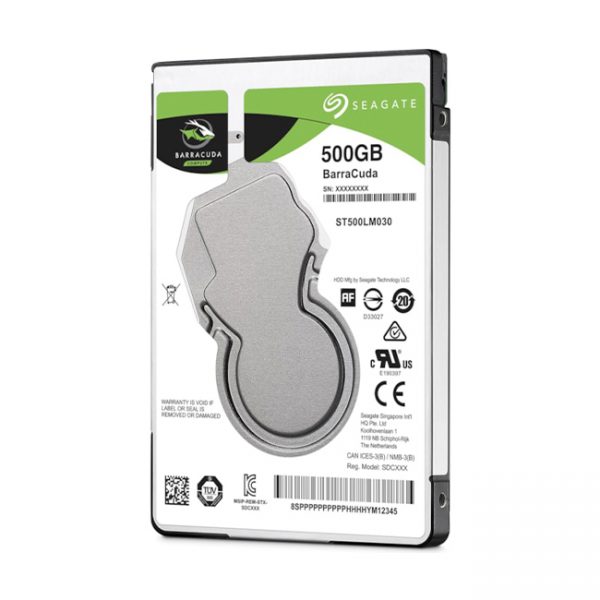

The reduced size form factor of the 500GB BarraCuda Compute 5400 rpm SATA 2.5″ Internal HDD from Seagate makes it easy to integrate this drive into smaller systems such as laptops and other small form factor computers. Once installed this drive offers enhanced performance to suit the needs of the most demanding applications. With data transfer rates of up to 140 MB/s users benefit from faster load times, the ability to quickly save large files, and more.
With a broad 2.5-inch hard drive portfolio and a 500GB capacity in a reduced size form factor this drive is suitable for a variety of applications.
This thin, lightweight hard drive provides seamless upgrades in thin and light laptops and other small form factor systems.
With data rates up to 140 MB/s users benefit from an enhanced PC end-user experience and faster file transfers.
This BarraCuda Compute drive offers reduced system heat generation and vibration.
|Storage Capacity||500 GB|
|Cache Memory||128 MB|
|Interface||SATA III (6 Gb/s)|
|Seek Time||13.0 ms|
|Spindle Speed (RPM)||5400 RPM|
|Areal Density||1320 Gb/in²|
|Disk Sector Format||512e|
Reliability / Data Integrity
|Endurance (Total Bytes Written)||55 TB|
|Non-Recoverable Read Errors per Bits Read||1 in 1014|
|Power Draw||0.45 W (Idle)
1.7 W (Active)
|Supported Voltage||5 VDC|
|Current||1.0 A at 5 VDC|
|Operating Shock||400 G / 2.0 ms|
|Storage Shock||100 G / 1.0 ms|
|Operating Vibration||2 G / 5 to 200 Hz|
|Storage Vibration||5 G / 5 to 500 Hz|
|Operating Temperature||32 to 140°F / 0 to 60°C|
|Storage Temperature||-40 to 158°F / -40 to 70°C|
|Operating Humidity||5 to 95%|
|Storage Humidity||5 to 95%|
|Operating Altitude||-1,000 to 10,000′ / -304.8 to 3048 m|
|Storage Altitude||-1,000 to 40,000′ / -304.8 to 12,192 m|
|Certifications||RoHS, as per Manufacturer|
|Dimensions (W x H x D)||2.8 x 0.28 x 4″ / 71.1 x 7.11 x 101.6 mm|
|Weight||0.2 lb / 90 g|
|Warranty Length||Limited 2-Year Warranty|
|Package Weight||0.465 lb|
|Box Dimensions (LxWxH)||8.8 x 6.1 x 3″|
