More reliability and versatility in a professional, compact display

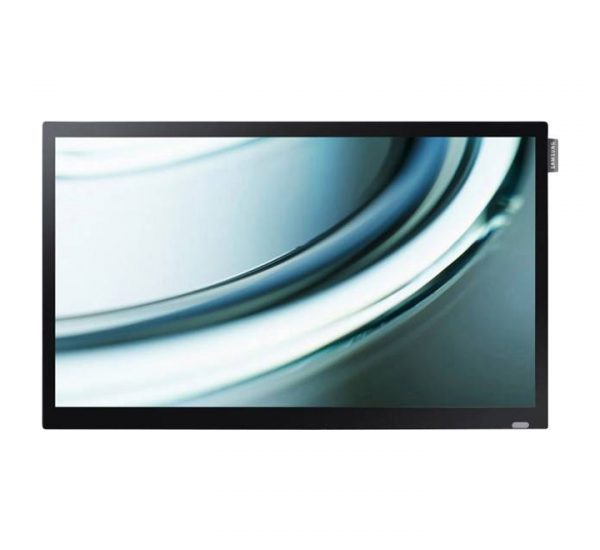

The digital advertising system DB22 D-P offers you many professional functions in a compact form, which you can easily access a wide range of customer requirements. These smaller, versatile display is particularly suitable for individual customers tailor-made content personal to present. In addition to this, the DB22 D-P with a guaranteed daily use over 16 hours and a 3-year warranty on a professional advertising system very reliable.
Simplified presentation of contents with a user-friendly complete solution
Increase the productivity and reduce operating costs by advertising systems use you on small areas easier to install and configure. The built-in SSSP-complete solution for 2. Generation does not need a separate PC or media player more and thus optimizes the operation and lowers the total cost of ownership (TCO). The provision of content is without a PC and via USB-Plug-and-play even easier and more efficient.
More business opportunities with the advanced 2. SSSP-generation
The digital advertising system DB22 D-P uses the considerably improved 2. SSSP-Generation. The new Quad Core-So C-processor improves performance significantly and makes the advertising content thanks to the impressive fast processing power in detail and flicker-free. It also supports the 2. SSSP-Generation a picture-in-Bild-Gro size of over 50 percent of the display area compared to under 50 percent of digital dual-core advertising systems.
Managing digital advertising systems almost everywhere and at any time via WLAN and a mobile device
The operation via mobile devices, thanks to the practical, integrated WLAN module very comfortable. Furthermore, content can be managed easily via WLAN and on digital advertising system can be transferred. The possibility of content from a mobile device to send and to plan, rather than with the system connected PC or the right cable to find, simplifies the display management considerably.
Convenient management of digital advertising systems via a simplified Start Screen, Tools and Templates
You can use the functions of the digital advertising system intuitively using the newly designed start screen, which can be configured so that you can quickly access to frequently used functions and menus. Save time and effort by putting your messages with 100 different predefined templates, which are tailored to different vertical markets, easy and effective to create and view.
Improved Functions content control even without a separate PC
The advertising system DB22 D-P SMART signage with the Quad Core-So C-technology offers robust functionality and supports the data link function without PC for comprehensive content management. You can content simply by purchasing a data link server and advanced data link module without any additional SBB or PIM (plug-in modules) Retrieve and update.
Large and for the environment optimized viewing angle on the advertising message
Samsung has the advertising system DB22 D-P with multiple functions, the outstanding image quality in fhd for maximum effect. Viewer can WVA-screen thanks to the extremely large viewing angle can be visible from almost any angle. You can also use different picture modes for different environments, in order to guarantee the optimum quality for the correct starting point: rich colors and high image quality for promoting products in a land or a shopping center, pin-sharp text and videos to display information and branding in an office or in an educational establishment, as well as planned text changes in schedules and video advertising in the terminal and much more.
Simple and immediate use of displays at several locations
You can at different locations installed Samsung SMART signage via a web server via remote access use and the current screens in real-time. The advanced remote maintenance functions of the DB22 D-P optimize the management and increase the comfort. With Magic Info Server, you can use the digital advertising system with comprehensive media content, improved operational efficiency and low total cost of ownership in a clear and simplified configuration.
Brand
Samsung
REMOTE CONTROL
-
Typeremote control
CONNECTIONS
-
TypeHDMI input, Multiple Display Control, USB 2.0, VGA input, audio line-in, audio line-out
-
Qty2
-
Connector Type15 pin HD D-Sub (HD-15), 19 pin HDMI Type A, 4 pin USB Type A, RJ-45, mini-phone stereo 3.5 mm
MISCELLANEOUS
-
Compliant StandardsDDC-2B, EMC, Plug and Play, RoHS
-
Color Categoryblack
-
Flat Panel Mount Interface100 x 100 mm
TV TUNER
-
TV Tuner PresenceNo
-
Tuners Configurationno tuner
HEADER
-
BrandSamsung
-
Product LineSamsung
-
ModelDB22D-P
-
SeriesDB-D Series
TV SYSTEM
-
Additional FeaturesPivot, Multiple Display Control (MDC), MagicInfo, Smart Scheduling, Quad-Core processor, Certified for 16/7 Continuous Operation
TELEVISION
-
TypeLED-backlit LCD flat panel display
-
Commercial UseYes
-
Commercial Targetingdigital signage
-
LCD Backlight TechnologyLED backlight
-
LED Backlight Typedirect-lit LED
-
Video InterfaceHDMI
-
HDMI Ports Qty1
-
PC InterfaceVGA (HD-15)
-
Diagonal Class22 in
-
Diagonal Class (metric)55.9 cm
-
Diagonal Size21.5 in
-
Diagonal Size (metric)54.6 cm
-
Resolution1920 x 1080
-
Display Format1080p (Full HD)
-
Response Time5 ms
-
Image Aspect Ratio16:9
-
Image Contrast Ratio1000:1
-
Viewing Angle178°
-
Viewing Angle (Vertical)178°
-
Brightness250 cd/m2
-
HDCP Compatibleyes
-
Additional FeaturesCertified for 16/7 Continuous Operation, MagicInfo, Multiple Display Control (MDC), Quad-Core processor, Smart Scheduling, pivot
DIMENSIONS & WEIGHT
-
Width20 in
-
Depth2.3 in
-
Height12.3 in
-
Weight7.94 lbs
-
Commentswithout stand
COMMERCIAL DISPLAY
-
FeaturesAuto Source Switching & Recovery, Image Rotation, Magic Clone, SMART Signage Platform, button lock
MEDIA PLAYER
-
USB PortYes
-
USB Ports Qty2
-
PC ConfigurationARM Cortex-A9 / 1 GHz / 1.5 GB DDR3
-
Storage Drive Capacity4 GB
-
Operating SystemLinux
CABLE DETAILS
-
TypeVGA cable
POWER DEVICE
-
Typepower supply
-
Nominal VoltageAC 120/230 V
-
Frequency Required50/60 Hz
-
Power Consumption Operational44 Watt
-
Power Consumption Stand by0.5 Watt
STANDS & MOUNTS
-
Flat Panel Mount Interface100 x 100 mm
ENVIRONMENTAL STANDARDS
-
ENERGY STAR CertifiedYes
DIMENSIONS & WEIGHT (SHIPPING)
-
Shipping Width22.4 in
-
Shipping Depth5 in
-
Shipping Height14.8 in
-
Shipping Weight10.8 lbs
-
Width (Shipping)22.4 in
-
Weight (Shipping)10.8 lbs
SERVICE & SUPPORT
-
Type3 years warranty
SERVICE & SUPPORT DETAILS
-
Typelimited warranty
-
Service Includedparts and labor
-
Component (Television)backlight
-
Locationon-site
-
Full Contract Period3 years
ENVIRONMENTAL PARAMETERS
-
Min Operating Temperature32 °F
-
Max Operating Temperature104 °F
-
Humidity Range Operating10 – 80%
GENERAL
-
Video InterfaceHDMI
-
PC InterfaceVGA (HD-15)
-
HDCP CompatibleYes
-
TV TunerNo tuner
-
HDMI Ports Qty1 ports
-
Power Consumption Operational44 Watt
-
ManufacturerSamsung
SUSTAINABILITY
-
ENERGY STAR CertifiedYes
GENERAL
-
ManufacturerSamsung
