- Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.0.
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
- Expands two external USB3.0 Super-Speed ports on the system.
- Each USB port supplies maximum +5V / 900mA power output to USB device.
- Built-in 4-pin or 15-pin power connector for receiving extra power supply from system.
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
ACCESSORIES, Adapters & Cards
PCI-E 2-PORT USB3.2 GEN1 CARD

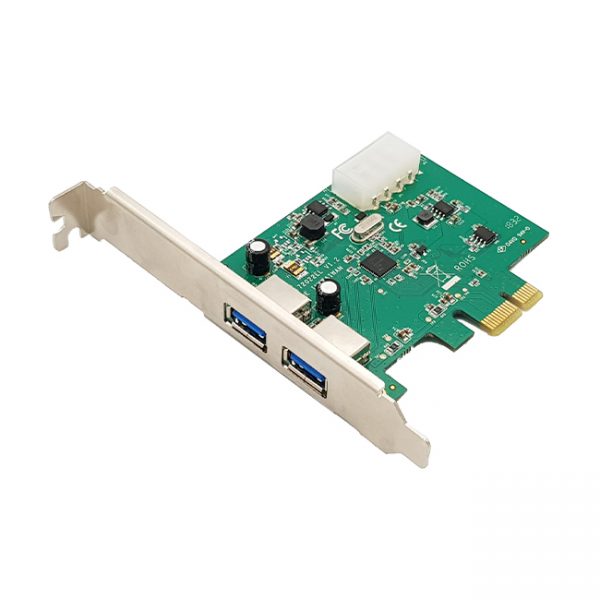

72022EL PCI-e 2 Port USB 3.0 Card W/Low Profile Bracket
Product Code | 72022EL![]() |
Bus Type | PCI Express |
Chipset ID | NEC-μPD720200 |
Number of Ports | 2-USB3.0 |
Transfer Rate | Low Speed:1.5Mbps, Full Speed:12Mbps |
High Speed:480Mbps, Super Speed:5Gpbs | |
Dimensions | 69(W)x79(L)mm |
Environment | Operating Temperature: -10°C to 80°C |
Storage Temperature: -20°C to 100°C | |
OS Compatibility | Windows 2000/XP/2003/Vista/7 |
