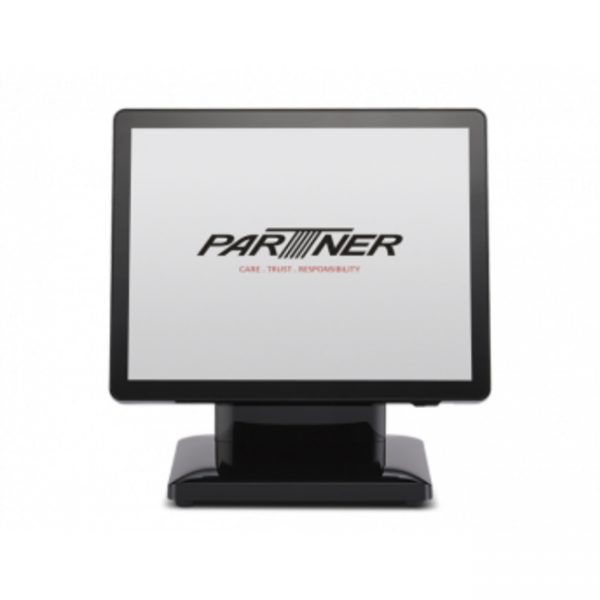

Partner SP-550 15″ 1024×768 Touch POS Terminal Black, Projected Capacitive Touch, 15″ Active TFT color LCD, Intel Celeron Bay Trail-D J1900 Quad Core 2.0GHz, 4GB DDR3 SO-DIMM memory (Max 8GB), 500GB 2.5″ SATA HDD, Stylish and Glossy Plastic Finish, Black, IP65 Spill / Dust Resistant Front Panel, Whole Device IP54 rated, I/O: 4x DB-9 Rear Com Ports, 1x DB-15 VGA Port, 1x RJ-11 Cashdrawer Port, 1x PS/2 Port, 6x USB Ports (5x USB 2.0 / 1x USB 3.0), 1x DC-12V Out, 1x DC-12V In, OS Supported – Windows Embedded / 7 / 8 / 8.1 / POSReady 7 And Above / Linux / Ubuntu, No OS included

Space-Saving Design
The Partner Tech SP-550 is a sleek, energy efficient POS terminal with a compact footprint. This allows retailers to optimize counter space and leaves room for sales boosters like impulse purchase displays. The SP-550 is an ideal solution for creating a lasting and positive final impression on the customer.

Intel Inside
Quick and efficient service is the cornerstone of any and every business from retail to hospitality. Because the SP-550 is powered by a lightning fast Intel Celeron Processor Bay Trail-D J1900 (2.0GHz up to 2.42GHz, 2M Cache), it can handle demanding applications and process payment transactions in record time. Furthermore, the POS terminal supports up to 8 GB of memory and has a storage capacity of 128 G solid state drive.

Meets Restaurant Requirements
Accidents are unavoidable in the restaurant and retail industries. Spills, drops, and dust, are all part of busy, high-traffic environments. Purchasing rugged hardware is crucial for long term cost of ownership and the ROI of any POS hardware solution. The SP-550 is constructed using fanless technology, which minimizes the risk of damage from dust or dirt that could be pulled into the POS terminal with a fan. In addition, this POS terminal has no moving parts, which minimizes the chance of damage from impacts that can occur in busy, high-traffic retail stores and restaurants. The SP-550 has an IP54 sealing rating, which is required by all restaurants against spills, dust and particles that could compromise the system and cause downtime.

Rugged but Appealing Touchscreen
While rugged hardware is critical in high impact industries, the technology’s appearance shouldn’t be compromised. First impressions are made from the appearance of your establishment and your POS hardware stands center stage. The SP-550 features an attractive, bezel-free, true flat touchscreen with projected capacitive touch technology. The 15-inch display is equipped with an LED backlight for low light situations and pole and wall-mount options for maximum flexibility. A wide tilt viewing angle ensures that you can always see the screen comfortably.

Ports and Expansion Options
Scalability and flexibility are crucial elements for consideration when you’re selecting POS hardware. You need POS terminals that are capable of growing with your business. One of the SP-550’s strongest points is its flexible design, which can be reconfigured at any time. The POS terminal features six USB ports, LAN, VGA and COM ports, and accessibility for a cash drawer if needed. A mini PCI-e and wireless LAN module provide added power when necessary.

Optional Peripherals to Engage Customers
The SP-550 is a versatile solution with a wide range of peripheral ports allowing for customization for just about any use. There are several optional peripherals, including an encryption capable magnetic reader. Often, customers prefer to watch staff ring up items in real time on a customer facing display; secondary customer display options include a VFD (2×20) or 7-inch LCD screen that can help you increase customer engagement. If additional branding and digital signage is your objective, you can choose from 11.6-inch or 15-inch LCD monitors.

Operating System Choice
The SP-550 offers your choice of operating system, including Windows 7, Windows 8.1, Industry Pro Retail 8.1, Windows 10 and Linux (Ubuntu).

Compact Footprint
Perfectly sized for sitting on a counter or in areas where you’re tight on space, the SP-550’s footprint measures just 14.7″ x 9.17″ x 12.71.

Variety of Colors
The SP-500 has a stylish, glossy finish and is available in black or two-tone black and white.

Power Saving
The SP-500 is energy efficient, which contributes to your corporate environmental-friendly policy – as well as energy cost savings.


Shops that are seeking high cost-performance (C/P) value, stylish and small footprint POS Terminal, which is able to utilized the space and also can be integrated with interior decoration.

An attractive and stylish POS terminal with glossy, fanless design that equipped with peripherals. Its stylish appearance and high cost-performance (C/P) value is perfectly suitable for the environment / shops with sense of design.

  • Bezel-free screen with projected capacitive touch (multi-touch)
  • Intel Celeron Processor Bay Trail-D J1900 (2.0GHz up to 2.42 GHz, 2M Cache)
  • Fanless design with spill and dust resistant front panel rated IP65. Entire unit is IP54 certified.
SKU: PTA-PT-SP550-4G Categories: ,




Product Code PT-SP550-4GBspacer
Item SP-550
CPU Type Intel Bay Trail-D J1900 2.0G up to 2.4G, 2M Cache
LCD 15″ Active TFT color LCD, 350 nits resolution 1024 x 768
Touch Projected Capacitive Touch
Memory 2G 204pin DDR3L-1333, SO-DIMM x 2 Max Support up to 8GB
LAN 10/100/1000 Gb Ethernet x 1
Storage 2.5″ type SATA HDD x 1
I/O Interface 4 * COM ports [COM1~4 on rear I/O ( powered with DC +5/+12V
COM1~2 by BIOS selection, COM3~4 by jumper jumper setting)]
1 * DB-15 VGA port
1 * RJ11 port supports 2 cash drawer(DC+24v)
1 * RJ-45 LAN port with activity and link LEDs
1 * PS/2 KB
1 * DC+12v out Jack
6 * USB (5 * USB 2.0 + 1 * USB 3.0)
1 * DC +12V input power-jack
Expansion Options 1 * Mini PCI-e, Support Wireless LAN module
Optional Peripherals 3 tracks magnetic reader
Integrated 2nd display VFD (2 x 20) or 7″ LCD
2nd display 11.6″ or 15″ LCD
Operation System Windows 7, POS Ready7, Windows 8.1, Industry Pro Retail 8.1,
Windows 10, Linux (Ubuntu)
Power Supply AC100~240V/DC+12V, 90 watt power adaptor
Dimensions Physical:360mm (W) x233mm (D) x 323mm (H)
Operating Temp 0°C ~ +40°C
Storage Temperature -20°C ~ +60°C
Humidity 15%~80%
