Partner 7″ Rear LCD Display (Hinge/Bracket/Cable Required)

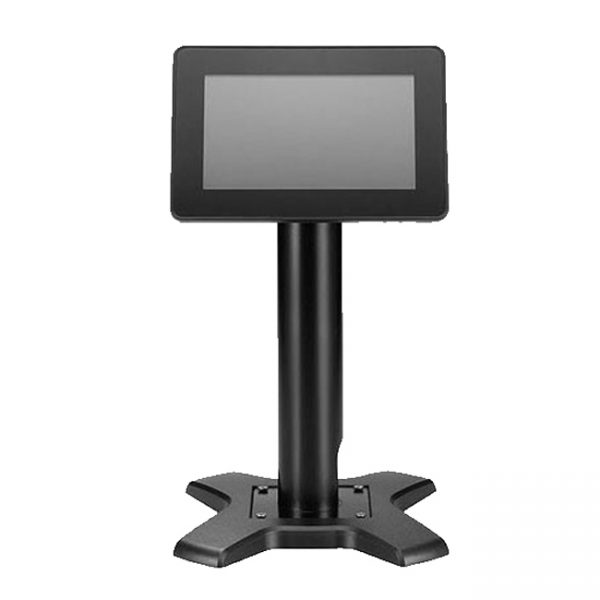

The CD-70 is a 7” display, which has a stylish and modern bezelfree design. It can be applied as a second, customer-facing display in retail environments. Another adoption is to use it as main display for applications requiring a small screen. Through the pole stand the monitor is adjustable and can be fixed easily in the required position convenient for the customers. Via USB interface the videosignal as well as the one for power (5V) is applied. The low power consumption of CD-70 is 2.5 W with LED backlight. The cost and space-saving display includes a VESA mount for flexible installation.


  • Bezelfree monitor
  • Spill and dust proof monitor, meets
  • IP54 requirements
  • USB interface, providing CD-7220 emulation (for easy start)
  • Power supplied by USB connection (5V)
  • Low power consumption of 2.5 W
  • with LED backlight
  • ON/ OFF switch
  • VESA 75 x 75 mm for flexible mounting options
SKU: PT-CD70 Categories: ,




Product Code PT-CD70spacer
LCD Display 7” TFT panel active matrix with LED backlight, bezelfree type
Backlight MTBF 20.000 hours
Pixel Pitch 0.1926 mm (H) x 0.179 mm (V)
Max. Resolution XGA 800 x 480
Active Area 154.08mm (W) x 85.92mm (H)
Contrast Ratio 500:1
Brightness 350 cd/m2
Display Colors 16m colors
Viewing Angle 140° (H) / 120° (V)
Monitor Viewing Angle L/R 70° ~ 70°
U/D 50° ~ 70°
Power adaptor No adaptor required, power via 5V USB interface
power consumption 2.5W
USB Controller Display Link DL115, USB 2.0
Environment Operating : Storage
Temperature : 0°~40° : -10°~+60°
Humidity : 20%-80% : 15%-85%
Certification CE, FCC, BSMI
IP-Level IP54
Dimension 205mm (W) x 23mm (D) x (H) 135mm without pole
(H) 530mm with pole stand (max.)
Housing Color Black
Options use as 2nd display with pole stand
