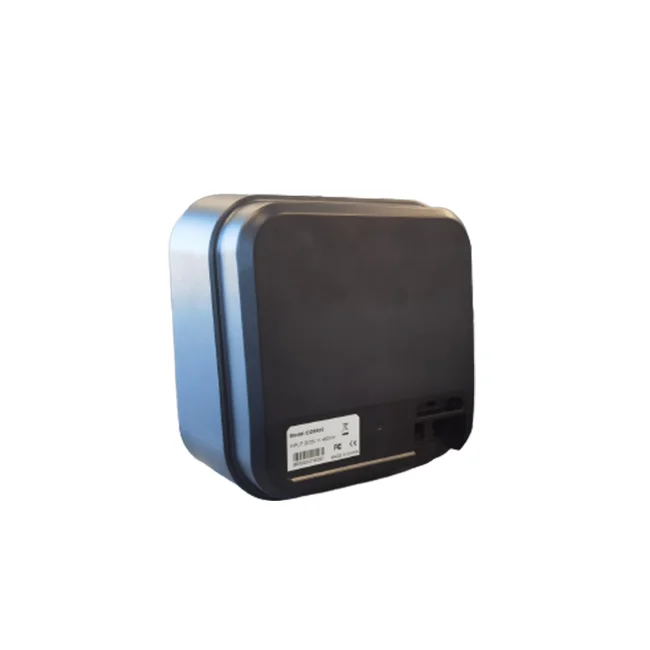

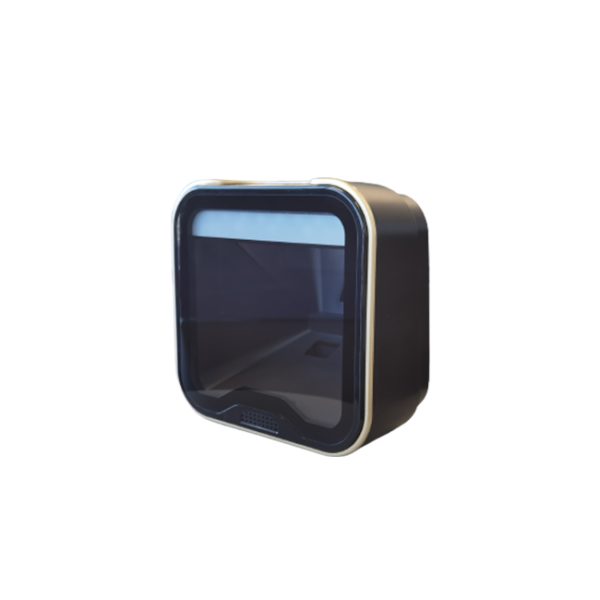

MAXPOS OD8600 Table Platform Mount Barcode Scanner


  • Platform table mount barcode scanner suitable for various new retail industries.
  • Megapixels, super large viewing angle, smooth switching between paper barcodes and mobile barcodes.
  • Large viewing angle, smooth switching between paper barcodes and mobile barcodes.

OD8600 table mount barcode scanner has megapixels and wide viewing angles, seamless transitions between paper and mobile barcodes, and suits for multiple business environments in retail cash registers, inventory management, supermarkets, utilities, ticketing, etc. In addition, other types of barcode scanners can suit different business actual demands.

Hands-Free Platform Barcode Scanner is a revolutionary breakthrough that frees your hands while boosting efficiency. This unique barcode scanner, created to redefine barcode scanning in fast-paced workplaces, combines cutting-edge technology with unrivaled ease, delivering a smooth and effective scanning experience like nothing before.

The OD8600 redefines the concept of hands-free scanning through its sophisticated and ergonomic design. The intelligently constructed scanning device is creatively placed on a platform or workstation, permitting users to read barcodes without having to handle or operate the scanner manually. Saying goodbye to conventional handheld scanner limits and hello to the versatility of hands-free scanning.

The OD8600 platform hands-free barcode scanner offers excellent scanning performance through superior imaging technologies. Its high-resolution image sensor and sophisticated algorithms provide rapid and precise barcode collection, regardless of paper barcodes or mobile barcodes. Each barcode is effortlessly read, allowing for real-time data collecting and increased efficiency in constantly changing circumstances.

Easy to use table mount barcode scanner in high-traffic areas including retail, restaurant, supermarket, and hospitality ticketing. The fixed-mount barcode scanner effectively delivers high-volume, hands-free scanning from 1D and 2D bar codes. Platform barcode scanner enables quick, precise, and reliable scanning in a small footprint that accommodates the smallest of spaces. For any other handheld barcode scanners or industrial barcode scanners, you could download the product catalog for quick viewing or directly contact us to show your demands.

SKU: OD8600 Categories: ,




Physical Characteristics
Dimensions 186mm x 152mm x 87mm
Voltage 5V
Stand-by Current 380mA
Interfaces Supported USB
Weight 437g
Starting Current 500mA
Work Current 500mA
Prompting Mode LED/Speaker
Image (Pixels) 1280 pixels (H) x 1024 pixels (V)
Light Source Warm Yellow LED
Field of View 39°(H) ,28°(V)
Roll / Pitch / Yaw 360°, ±65° , ±65°
Print Contrast 20% minimum reflective difference
Motion Tolerances 4M/S
Resolution ≥ 4mil
Symbology Decode Capability
1-D Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar

Expanded、China Post (Hong Kong 2 of 5)、Korea Post.

2-D Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、


User Environment
Operating Temperature -20°C to 60°C
Storage Temperature -30°C to 70°C
Humidity 5% to 95% relative humidity,non-condensing
Shock Specifications 8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes
Ambient Light Immunity 0-100,000 Lux.
