- AVR Boost and Buck
- Cold Start Function
- Smart RS232/USB Interface for Power Management
- Built-in Self-diagnostic Function
- Modem/LAN Internet Protection
- Compatible with Generator Set
- Models with LCD Display are Available Now
- Fastest Charging Capacity
- Auto Charging at Off Mode
- Auto-restart Function
ACCESSORIES, UPS

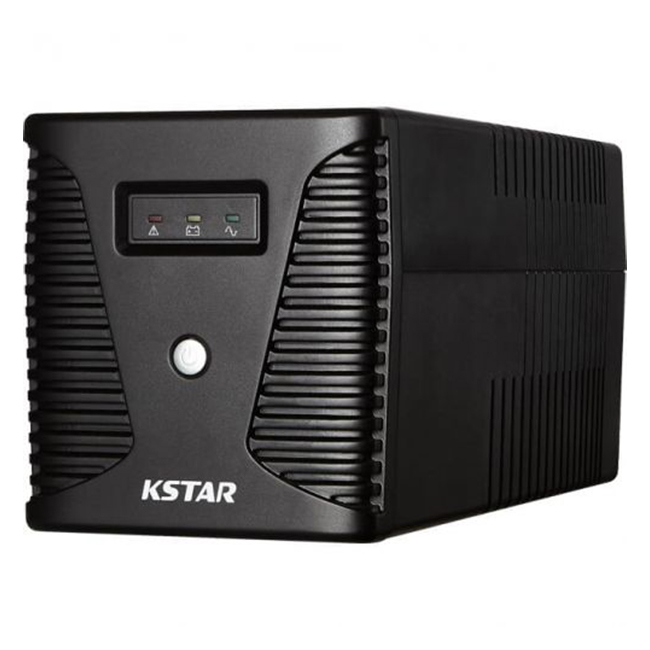

KSTAR KS-UA100 1000VA LINE INTERACTIVE UPS
- Capacity: 1000VA/600W
- Connectivity: 2 x IEC C13 Female Sockets, 1 x SA 3-Pin Plug Socket, 1 x USB
- Input: 220-240VAC, 50/60Hz
- Cold Start Function
- Power Input Cable Not Included
Model
UA100
Capacity (Va/Watts)
1000/ 600
Input
Nominal Input Voltage
110/120vac Or 220/230/240 Vac
Operating Voltage Range
81-145vac/162-290 Vac
Operating Frequency Range
50/60 Hz (1±10%)
Output
Output Voltage Range (Batt. Mode)
Simulated Sinewave At Nominal Voltage ±10%
Frequency Range (Batt. Mode)
50 Hz Or 60 Hz ± 1 Hz
Transfer Time
Typical 2-6 Ms, 10ms Max.
Battery
Battery Type & Number
12V/7Ah x 2
Typical Recharge Time
6-8 Hours ( To 90% Capacity)
Protection
Full Protection
Indicators
Indicators
Ac Mode, Battery Mode, Load Level, Battery Level
Alarm
Battery Mode
Sounding Every 10 Seconds
Battery Low
Sounding Every Second
Overload
Sounding Every 0.5 Second
Battery Replacement Alarm
Sounding Every 2 Seconds
Fault
Continuously Sounding
Management
Usb & Rs-232 Port(Optional)
Supports Windows® 2000/2003/Xp/Vista/2008, Windows® 7, Linux, Unix, And Mac
Environment
Operating Temperature
0- 40°C
Humidity Range
0-95 % (Non-Condensing)
Noise Level
<40db (1 Meter From Surface)
Physical
Dimension, W X D X H (Mm)
149.3×338×162
Net Weight (Kg)
7.8
Standards
Safety
IEC/EN62040-1;IEC/EN60950-1
Emc
IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8
