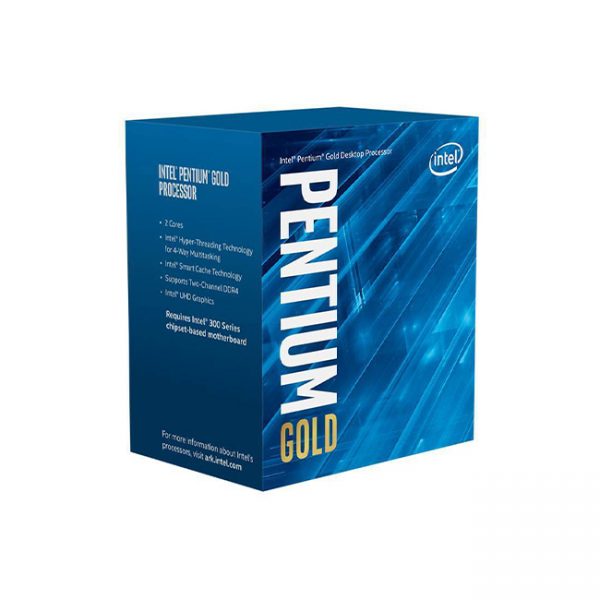

INTEL PENTIUM GOLD G5400 COFFEE LAKE PROCESSOR


  • 2 Cores & 4 Threads
  • 3.7 GHz Clock Speed
  • LGA 1151 Socket
  • 4MB Cache Memory
  • Intel UHD Graphics 610 (1050 MHz)
  • Dual-Channel DDR4-2400 Memory
  • AES-NI Instructions
  • Intel VT-d Virtualization
  • Intel 300 Series Chipset Compatible Only
  • 8th Generation (Coffee Lake-S)

Only compatible with Intel’s 300 series chipset-based motherboards, the Pentium G5400 3.7 GHz Dual-Core LGA 1151 Processor from Intel has a base clock speed of 3.7 GHz and comes with features such as AES-NI encryption and Intel VT-d virtualization technology for directed I/O. Additionally, this processor features 2 cores with 4 threads in an LGA 1151 socket, has 4MB of cache memory, and 16 PCIe lanes. Having 2 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 4 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports dual-channel DDR4-2400 RAM and utilizes 8th Generation (Coffee Lake-S) technology.

Graphically, the Pentium G5400 uses the integrated Intel UHD Graphics 610 chipset, which has a dynamic frequency of 1050 MHz. This processor is not unlocked and does not feature an overclock speed. Included is a thermal solution.

SKU: G5400-BX Categories: ,

Brand

Intel

General
CPU Model Intel Pentium G5400
CPU Socket LGA 1151
Manufacturing Process 14 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 16 (Revision 3.0)
Unlocked No
Performance
Number of Cores 2
Number of Threads 4
Base Clock Speed 3.7 GHz
L3 Cache 4 MB
Memory Support
Maximum Capacity 64 GB
Memory Support DDR4 2400 MHz
ECC Memory Yes
Channel Architecture Dual Channel
Power
Thermal Design Power (TDP) 54 W
Included Thermal Solution PCG 2015C (65 W)
Maximum Temperature 212°F / 100°C
Thermal Monitoring Technologies Yes
Technology
AES Support Yes
Extension SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
Integrated Graphics
Graphics Chipset Intel UHD Graphics 610
Maximum Resolution Support 4096 x 2304 at 60 Hz
Supported APIs DirectX: 12
OpenGL: 4.5
Number of Displays 3
Maximum Shared Video Memory 64 GB
Output Support eDP, DisplayPort, HDMI
Base Clock Speed 350 MHz
Maximum Boost Speed 1.05 GHz
Intel
Optane Memory Support No
vPro Support No
Performance Technologies Hyper-Threading, SpeedStep
Security Technologies Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Packaging Info
Package Weight 0.65 lb
Box Dimensions (LxWxH) 4.6 x 4.1 x 2.8″
