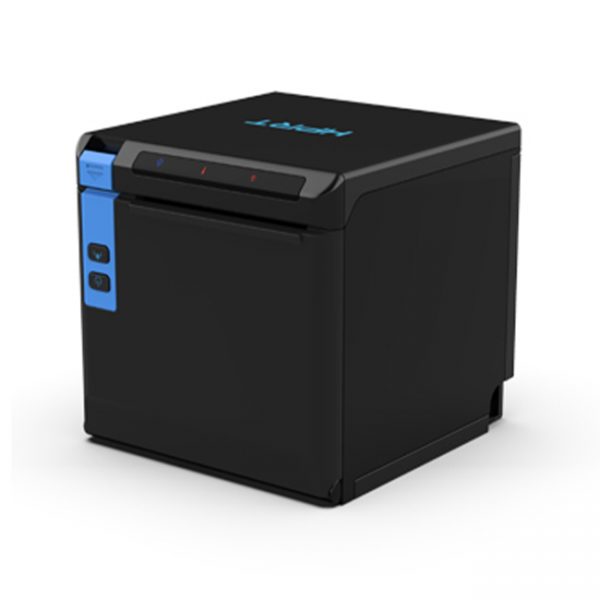

HPRT 3″ THERMAL POS PRINTER

HPRT

•  Cubic and fashionable design
•  Low printing noise
•  Cutter jam auto-elimination
•  2″ and 3″ printing paper width available
•  Top/Front paper loading/exit

TP808 Printer Specifications



SKU: TP808D Categories: ,

Brand

HPRT

brands

Printing Print Method Direct Thermal
Resolution 203 dpi (8 dots/mm)
Print Speed Max. 260 mm/s
Print Width Max. 80 mm
Interface Standard USB Type B, Serial Port, Ethernet
Option Bluetooth, Wi-Fi
Page Mode Support
Memory RAM 4 MB
Flash 4 MB
Programming Language ESC/POS
Fonts Alphanumeric; Simplified Chinese, Traditional Chinese; 46 International Character Sets
Barcode Linear Barcodes UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
2D Barcodes PDF417, QR code
Graphics Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 64 KB, the total size of bitmap is 256 KB)
Sensors Standard Paper out Detector, Head up Detector, Paper near end sensors (Dual)
Option Black Mark Detector
LED Indicator Power Blue
Paper Orange
Error Red
Power Supply Input AC 100V ~ 240V, 50/60Hz
Output DC 24V, 2.5A
Paper Paper Type Thermal Receipt Paper
Paper Width 58 mm/80 mm
Paper Thickness 0.056 mm ~ 0.13 mm
Roll Paper

Diameter

Max. Φ83 mm (O.D.)
Paper Load Front or Top paper loading
Paper Cut Partial cut or Full cut
Environment Operating 0°C ~ 40°C, 20% ~ 85% R.H, no-condensation
Storage -20°C ~ 70°C, 5% ~ 95% R.H, no-condensation
Physical Characteristics Dimensions 137.3(L)×132(W)×130.5(H) mm
Weight 1.35 kg
Options and Accessories USB/Serial Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide
Reliability TPH 150 km
Cutter 2 million cuts
Software Driver HPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDK WinCE, Win Mobile, Android, iOS
