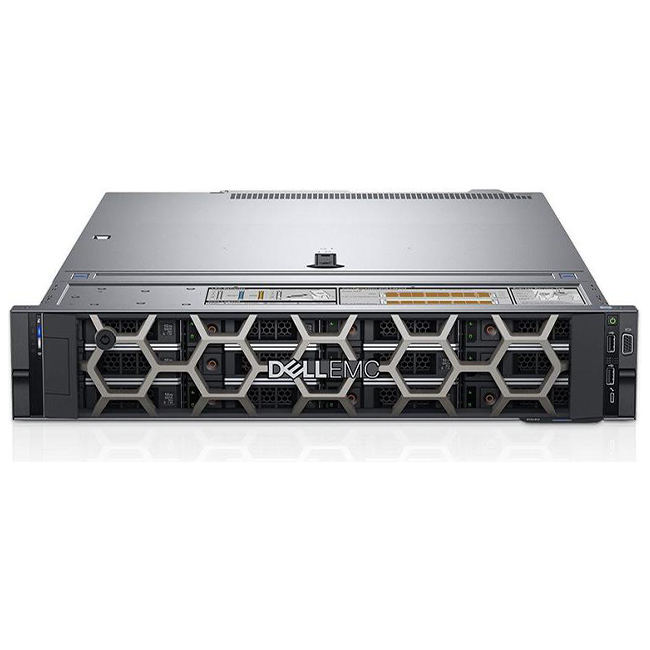

DELL POWEREDGE R740 2U RACK SERVER (PER740SAM2)


Dell PowerEdge R740 2U Rack Server, Intel Xeon Silver 4208 2.1Ghz up to 3.2Ghz 11MB Cache Eight (8) Core Processor with no intergrated graphics, Chassis with up to 8 x 3.5″ SAS/SATA Hard Drives for 1 CPU Configuration, PowerEdge 2U Standard Bezel, Riser Config 1 – 4 x8 slots, 16GB DDR4-2933MT/s Dual Rank RDIMM memory, iDRAC9 Enterprise, 600GB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive 3.5in Hybrid carrier, PERC H730P RAID Controller 2GB NV Cache Mini card, Standard 1U Heatsink, No Optical Drive, Dual Hot-plug Redundant Power Supply (1+1) 750W, C13 to C14 PDU Style 10 AMP 6.5 Feet (2m) Power Cord, QLogic FastLinQ 41162 Dual Port 10GbE BASE-T + Dual Port 1GbE BASE-T, ReadyRails Sliding Rails Without Cable Management Arm, No Operating System

Overview:

PowerEdge R740 Rack Server – Accelerate your applications
Maximize application performance with the optimal mix of accelerator cards, storage and compute power in a 2U, 2-socket platform optimized for VDI.

Features:

General-purpose workhorse optimized for workload acceleration
Maximize your application performance with the PowerEdge R740 server, which brings you the perfect balance of accelerator cards, storage and compute resources in a 2U, 2-socket platform. With up to three 300W accelerator cards or six 150W cards, the R740 has the versatility to adapt to virtually any application and provides the optimum platform for VDI deployments. The R740 offers up to 16 x 2.5″ or 8 x 3.5″ drives and iDRAC9, so you can scale to meet demands and simplify the entire IT lifecycle.

Ideal workloads:

  • VDI
  • Private cloud
  • Artificial intelligence
  • Machine learning

Achieve IT transformation with the Dell EMC PowerEdge portfolio
The R740 is a general-purpose workhorse optimized for workload acceleration. With its versatility, the R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage (SDS).

  • Simplify and accelerate VMware vSAN deployments with validated, pre-bundled and tailored Ready Nodes.
  • Scale compute resources with Intel Xeon Scalable processors, delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors.
  • Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
  • Free up storage space using internal M.2 SSDs optimized for boot.

Automate productivity with intelligent, embedded management
Dell EMC automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities.

  • Help maximize uptime with proactive diagnostics and automated remediation that increase productivity up to 90%.
  • Leverage existing management consoles with easy integrations for VMware vSphere, Microsoft System Center and Nagios.
  • Help improve productivity with agent-free Dell EMC iDRAC9 for automated, efficient management.
  • Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers in rapid, scalable fashion.

Fortify your data center with comprehensive protection
Dell EMC provides a comprehensive, cyber-resilient architecture with security embedded into every server to protect your data.

  • Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
  • Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
  • Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.
  • Take control of your firmware consoles with embedded authentication that is designed to allow only properly designed updates to run.
SKU: PER740SAM2 Categories: ,

Brand

Dell

Product Code R740-PER740SAM2spacer
Processor Up to two Intel Xeon Scalable processors, up to 28 cores per processor
Operating System Canonical Ubuntu LTS Citrix XenServer
Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux
SUSE Linux Enterprise Server VMware ESXi
Memory 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Storage Controllers Internal controllers:
PERC H330, H730p, H740p, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem:
HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID):
H840
12Gbps SAS HBAs (non-RAID):
External- 12Gbps SAS HBA (non-RAID)
Internal- HBA330 (non-RAID)
Drive Bays Front drive bays:
Up to 16 x 2.5″ SAS/SATA/SSD, max 60TB
Up to 8 x 3.5″ SAS/SATA, max 96TB
Dimensions Form factor:
Rack (2U)
Chassis depth:
715.5 mm
Data Protection TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Ports Network daughter card options:
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports:
Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC
Direct Micro-USB Rear ports:
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Video card:
VGA
PCIe:
Up to 8 x Gen3 slots, Up to 4 x16
Chassis Optional LCD or Security bezel
Power Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available
Management Embedded / At-the-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
OpenManage Integrations
Microsoft System Center
VMware vCenter
BMC software (available from BMC)
OpenManage Connections
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
