  • 500VA-1200VA
  • Inverter Charger
  • PowerControl
  • PowerAssist Boost
  • High start-up power
  • Search Mode
  • Programmable relay
  • Remote on/off

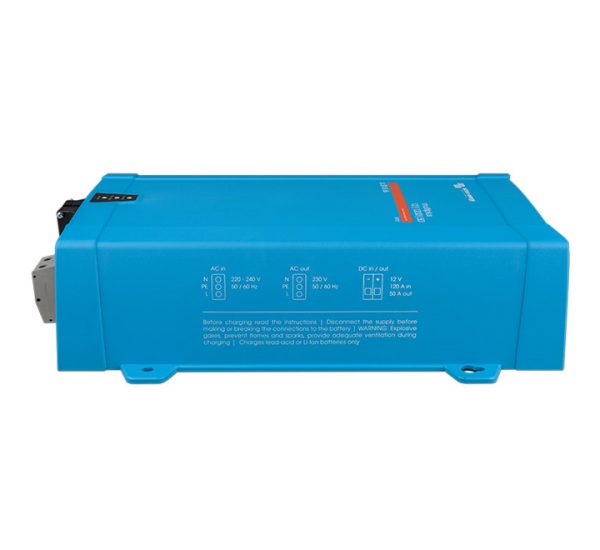

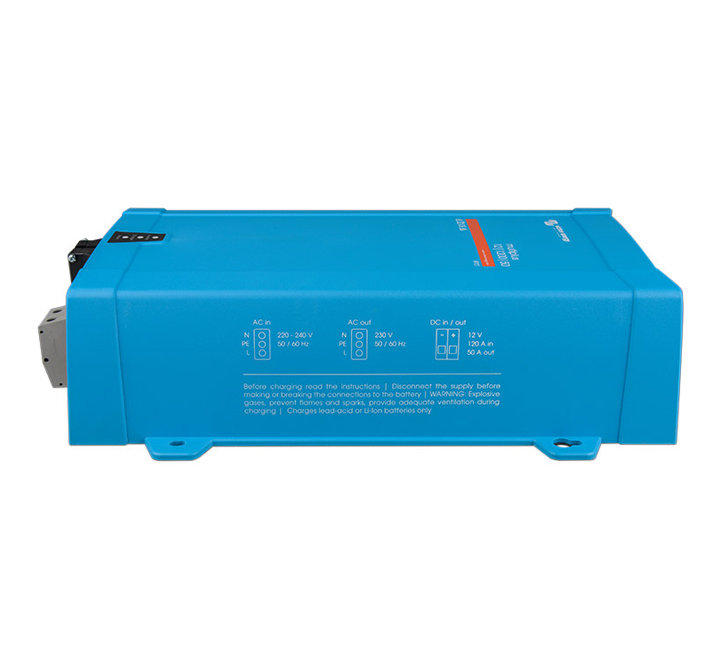

The new MultiPlus 12V 1200VA 50-16 charger inverter is configured to replace the previous MultiPlus Compact range. It is a truly powerful sine wave inverter, a sophisticated battery charger that features adaptive charging technology and a high-speed AC transfer switch in a single compact enclosure.

Characteristics of the MultiPlus 12V 1200VA 50-16 charger inverter:
Proven reliability
The complete bridge plus the topology of the toroidal transformer has proved its reliability for many years. The inverter is short-circuit proof and is protected against overheating, either due to an overload or at a high ambient temperature.
High starting power
Necessary to initiate high starting loads such as power converters for LED lamps, halogen lamps or power tools.
Search mode When the search mode is activated, the power consumption of the inverter operating without load decreases by approx. 70% In this mode, the MultiPlus, when operating in inverter mode, shuts down in case of insufficient load or very low load, and turns on every two seconds for a short period of time. If the output current exceeds a set level, the inverter will continue to operate. Otherwise, the inverter will shut down again.
Programmable relay
By default, the programmable relay is configured as an alarm relay, that is, the relay will be deactivated in the event of an alarm or pre-alarm (the inverter is too hot, the input is almost too high, the battery voltage is too low)
On / off / remote charger on
Three-pole connector.

SKU: INVERCARE2 Categories: , ,
Manufacturer Part Number PMP241500000
Voltage 24
Transfer Switch (A) 16
Cont. Output Power at 25°C (VA) 500
Peak Power (W) 900
Max Efficiency 91%
Zero Load Power (W) 6
Charge Current House Battery (A) 10
Charge Current Starter Battery (A) 1 (12V and 24V models only)
Battery Temperature Sensor Yes
Programmable Relay Yes
Remote on-off On/off/charger only
Protection Category IP21
Dimensions H311 x W182 x D100mm
Weight (kg) 4.4
Warranty 5 Years
