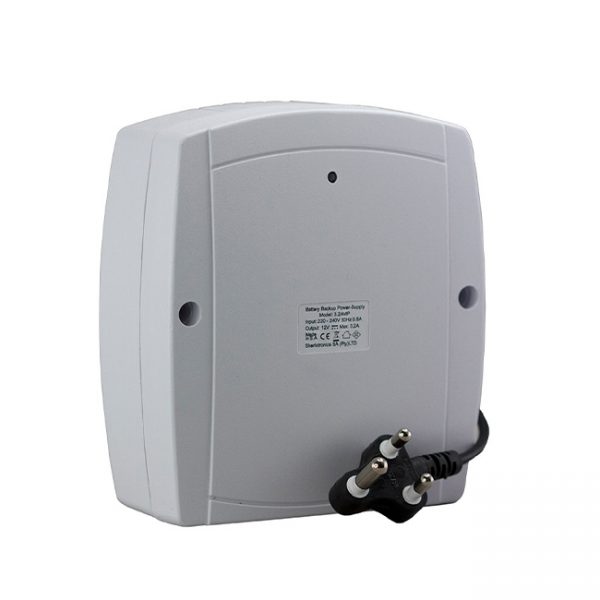

The device is an 12V Battery backup Power-supply unit used
on various security equipment such as Alarm panels, Access control panels,
CCTV, and Panic systems
ACCESSORIES, PSU
12VDC 3.2AMP POWER SUPPLY/BATTERY CHARGER SHERLOTRONICS
- Microprocessor Controlled charging output.
- Low battery switch off at 10V DC.
- Buzzer tones on battery low and AC Fail.
- Resettable Fuse protection on output.
- Fuse protection on AC input.
- ABS Plastic enclosure.
- Input Voltage Range: 110V ~ 230V AC 50Hz
- Output Voltage: 13V ~ 14.4V Adjustable
- Max Current output: 3.2A DC / 40Watts
- Relay contact rating: 10A
- AC Fail output rating: 140mA Positive switching
- Operating temp: -3°C to 60°C
- Dimensions (lxbxh): 200 x 180 x 87mm
- Gross Weight: 0.895Kg
- Warranty: 12 Months.
